FORGED STEEL VALVES--- CLASS 800LB GATE VALVE

Design and Manufacturing Standards: Basic Design: API 602 & ANSI B16.34 Socket-Weld End Dimension: ANSI B16.11 Threaded End Dimension: ANSI B1.20.1 Inspection & Testing to: API 598

Valve Specifications : 1. Size: 1/2" to 2" 2. Bolted Bonnet or Welded Bonnet 3. Regular Port or Full Port 4. Compact Outside Screw & Yoke

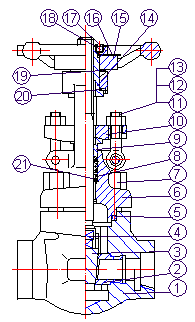

Standard Material List:

No.	Part Name	Material			No.	Part Name			Material
1	Body	ASTM A105			12	Nut			ASTM A194-2H
2	Seat Ring	ASTM A276-410 W/Stellite			13	Pin			ASTM A276-410
3	Wedge Disc	13Cr			14	Stem Nut			ASTM A276-410
4	Stem	ASTM A276-410			15	Handwheel			ASTM A197
5	Gasket	SS304 W/Graphite			16	Nameplate			Aluminum
6	Bonnet	ASTM A105			17	Handwheel Nut			ASTM A108-1020
7	Bolt	ASTM A193-B7			18	Set Screw			Carbon steel
8	Gland Packing	Grafoil			19	Washer			ASTM A276-410
9	Gland	ASTM A276-410			20	Thrust Washer			ASTM A276-410
10	Gland Flange	ASTM A105			21	Gland Packing			Braided Graphite
11	Eyebolt	ASTM A276-410
