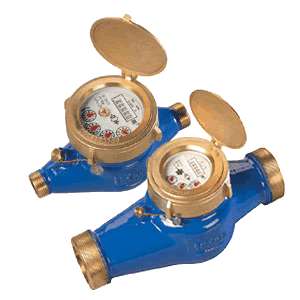

WATER METERS --- MULTI-JET DRY-DIAL MAGNET-DRIVE WATER METER
BodyBodySeat RingSeat RingSeat RingWedge DiscBonnetBonnetBonnetBonnetBodyBodyStemStem NutStem NutGlandGlandGland FlangeGland FlangeGland FlangeGland FlangeBoltsBoltsBoltsBoltsBoltsNutsBoltsNutsBoltsHand WheelHand WheelBack SeatBack SeatPackingPackingGasketGasket

Features:

1. Dry-dial, Magnetic drive, Resistance to exterior magnet interference

2. Multi-jet

3. Selected high quality materials for steady & reliable characteristic.

4.Vaccum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.

5. Measuring accuracy conform to ISO 4064 Class B standard.

6. Universal use, easy for interchange & maintenance.

Description:
This range of water meter is used to measure the total quantity of cold potable water which consumed in household or a resident unit, passing through the pipeline.

Working Condition:
Water temperature: ¡Ü50¡æ
Working pressure: ¡Ü1MPa



Main Technical Datas:
Meter Size
DN
(mm)
Class
qs
Overload
Flow
qp
Nominal
Flow
qt
Transitional
Flow
qmin
Min
Flow
Starting
Flow
Min
Reading
Lectura
Max
Reading
Lectura
m3/h
l/h
m3
15
B
3
1.5
120
30
14
0.0001
99999
20
B
5
2.5
200
50
16
0.0001
99999
25
B
7
3.5
280
70
19
0.0001
99999
32
B
12
6.0
480
120
25
0.0001
99999
40
B
20
10
800
200
56
0.001
99999
50
B
30
15
3000
450
70
0.001
99999

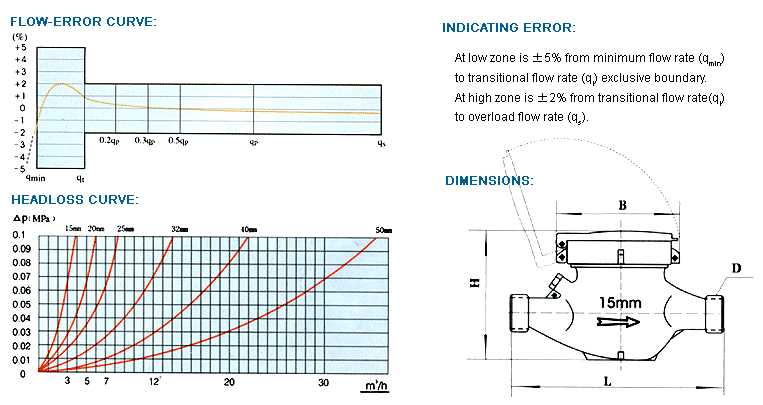

Dimensions and Weight:
Meter Size
DN
(mm)
Length
L
Width
B
Height
H
Connecting Thread
D
Weight
mm
inch
Kg
15
165 / 190
99
104
G3/4
1.5 / 1.6
20
190 / 195
99
106
G1
1.7 / 1.8
25
260 / 225
104
120
G1-1/4
2.6 / 2.4
32
260 / 230
104
120
G1-1/2
2.8 / 2.7
40
300 / 245
125
155
G2
5.4 / 4.5
50
300
125
155
G2-1/2
7.2
280
165
175
Flange Connections
